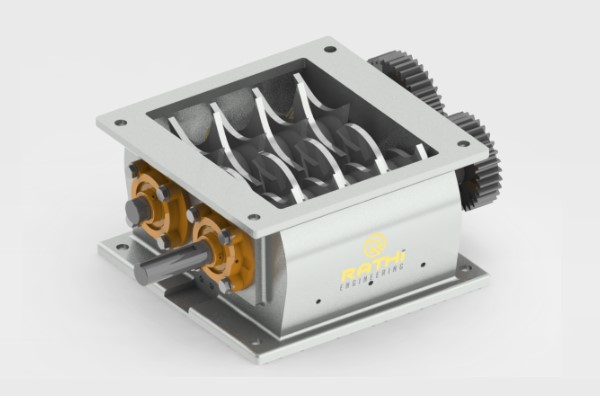

Rathi Crusher is robust crushing machine which deliver large lumps into smaller granules, this is used as primary crusher for further milling operations, also used as granular in some applications.

Rathi crusher is constructed of replaceable S & Star type knife blades on two rotor shaft which is supported by rigid pillow block, Housing of Crusher is available in both construction CI & fabricated MS.

Download Catalog Enquire Now

Rathi Crusher

SR.NO MODEL POWER RANGE(HP) Achievable Fineness (MM)
1 Heavy Duty Crusher (HDC) 3-5 5-20
2 Extra Heavy-Duty Crusher (2 HDC) 7.5-10 5-20
3 Super Heavy-Duty Crusher (SHDC) 10-20 5-20

Rathi Delumper

Rathi Delumper machine cuts large cake into smaller size, this machine is used for soft, medium-hard, fibrous and tough materials.

Rathi Delumper is fabricated construction of casing having inside one stationary blades & other rotating blades mounted on high speed rotor shaft; rotor shaft is supported by two bearing fitted in Plummer block

Feed Size: 100-200 mm | Capacity: 100-1000 kg/hr

SR.NO MODEL POWER RANGE(HP) Achievable Fineness (MM)
1 DL 200 3-5 5-25
2 DL 500 7.5-15 5-25
3 DL 750 20-40 5-25
