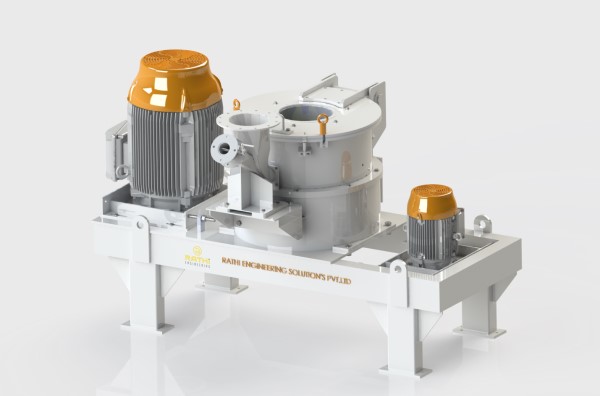

Rathi Air Classifying mill is one of versatile mill which provides efficient grinding, classifying and minimizes overgrinding of the material; this mill also provides maximum grinding flexibility with very sharp particle size distribution.Rathi Engineering Pvt Ltd is one of the best Air Classifier Mill manufacturer in pune.

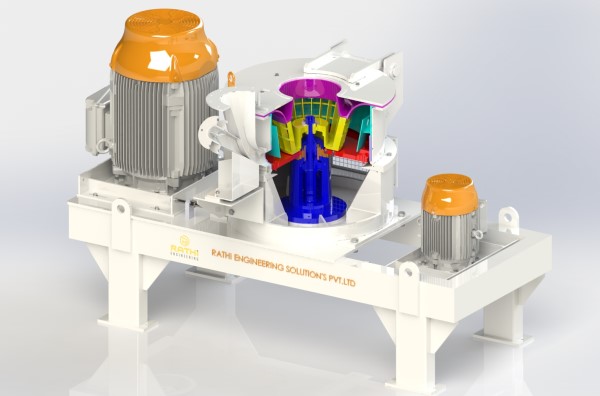

Rathi Air Classifying mill casing is available in both construction casted & fabricated, in casing Hammers mounted rotor disc provide efficient grinding & classifier wheel provides separate & minimize overgrinding of material.
Construction available for
- Explosive materials grinding & Explosion pressure up to 11bar
- Independent & coaxial drive
- Closed loop system with inert gas as carrier.
SR.NO. | MODEL | Main Drive Motor (HP) | Classifier Drive Motor (HP) | Rotor Speed (MAX.RPM) | Classifier Speed (MAX.RPM) | Achievable Fineness (MESH) |
---|---|---|---|---|---|---|
1 | 5 ACM | 5 | 1 | 9000 | 5400 | 30-3000 |
2 | 10 ACM | 10 | 1.5 | 7000 | 4500 | 30-3000 |
3 | 15 ACM | 15 | 1.5 | 7000 | 4500 | 30-3000 |
4 | 30 ACM | 30 | 7.5 | 4600 | 2500 | 30-3000 |
5 | 40 ACM | 40 | 7.5 | 4600 | 2500 | 30-3000 |
6 | 30 ACM(ID) | 30 | 7.5 | 5000 | 3000 | 30-3000 |
7 | 40 ACM(ID) | 40 | 7.5 | 5000 | 3000 | 30-3000 |
8 | 60 ACM | 60 | 15 | 3000 | 2000 | 30-3000 |
9 | 60 ACM(ID) | 60 | 15 | 3500 | 3000 | 30-3000 |
10 | 75 ACM | 75 | 15 | 3000 | 2000 | 30-3000 |
11 | 75 ACM(ID) | 75 | 15 | 3500 | 3000 | 30-3000 |
12 | 100 ACM | 100 | 15 | 3000 | 2000 | 30-3000 |
13 | 100 ACM(ID) | 100 | 15 | 3500 | 3000 | 30-3000 |
14 | 120 ACM | 120 | 20 | 2000 | 1500 | 30-3000 |
