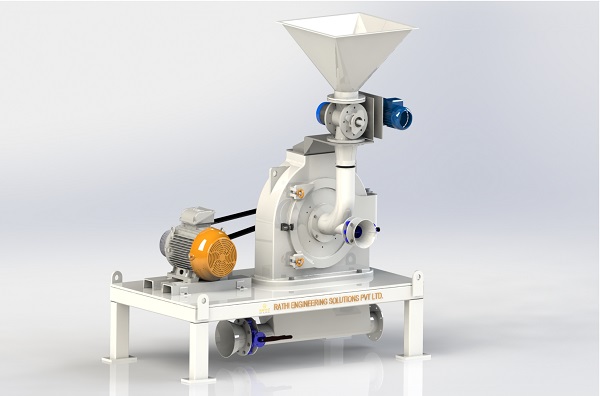

Rathi Universal mill is casted construction of casing, with grinding elements fitted on rotor shaft mounted on casing body along with bearing housing assembly. Grinding elements are covered by sieve ring assembly with intermediate grinding jaw arrangement on peripheral.
Rathi Universal mill is versatile mill which delivers maximum grinding flexibility for fine and ultrafine particle size reduction. This mill is used for soft, medium-hard materials with interchangeable grinding elements.
Download Catalog Enquire NowConfigurations of grinding elements
- Turbo Rotor – used for efficient grinding to a high degree of fineness.
- Inclined Turbo Rotor – used for highly efficient grinding than Turbo Rotor
- Pin Rotor – used for fine grinding of materials with high fat content.
- Stud Bar Rotor – used for coarser grinding, and material containing hard or large particles.
Rathi Universal Mills
SR.NO | MODEL | POWER RANGE(HP) | Achievable Fineness (MM) |
---|---|---|---|
1 | BT-130 | 1-3 | 20-400 |
2 | BT-220 | 2-10 | 20-400 |
3 | BT-450 | 20-40 | 20-400 |
4 | BT-800 | 60-100 | 20-400 |
